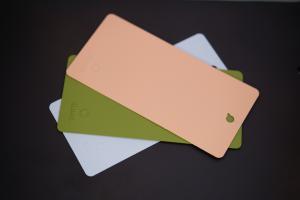

Decorative Thermoset Powder Coating , Light Color Thin Film Dry Powder Coating
About Powder Coating
Hsinda powder coating.A professional powder coating Manufacturer, which adheres to the advanced concept of the European chemical industry and gradually approaches to its highest industry standards.
So far Hsinda has 6 advanced large-scale and 4 experimental production lines 1Bonding machine,with an annual production capacity of about 5000 tons for various type of powder coating. Hsinda has certified SGS and accorded with EU standard (ROSH2.0), so that we can meet various demands of customers.
Applications of Product
| ♦ Electrical Household Appliances | ♦ Aerospace Area |
| ♦ Automotive Electronics | ♦ Fitness Equipment |
| ♦ Track Traffic | ♦ Medical Devices |
| ♦ Petroleum Pipes, Valve | ♦ Tools & Hardware |
| ♦ LED Lights, Outdoor Lamps | ♦ Radiator & Heat Sink |
| ♦ Glass Decoration | ♦ External Facilities |
♦ Our Powder finishes are available in a vast range of colors and finishes.
♦ Including metallic effect,chrome effect,wood grain,Candy Color Powder ,MDF powder
and other special effect,making them ideal for indoor decoration of steel furniture,
and outdoor metal products such as agricultural machinery, auto parts
♦ Our products have a good storage stability ,salt spray resistance,weatherability, exterior durability,
corrosion resistance,chemicals resistance, Highly Weather- and UV-Resistant,and also Good heat flow.
Product detail
| Type | Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
| Color | RAL&Pantone color |
| Surface Finish | Superior gloss and color retention |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
| film thickness | Not less than 100μm |
Instruction
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-30CM |
| Curing Temperature | 180-200℃,10 min-15 min |
Storage stability
| ♦ Store in ventilated, dry, clean room, temperature < 25℃ | ♦ Relative humidity 50-65% |
| ♦ Away from direct sunlight, fire, heat | ♦ For best performance, use within 6 months
|
| Test Item | Test Method | Test Result |
| Film Thickness | ISO2360 | 60-80um |
| Pencil Hardness | ASTMD 3363 | HB-H |
| Bending | ISO1519 | ≤10mm |
| Grid Test 1mm | ISO2409 | 0 Class |
| Impulse Test | ASTMD2794 | Pass |
| Cupping Test | ISO1520 | ≥8mm |
| Heat Resistance 1000 hours | ISO6270-1 | Popping<1mm |
| Salt Spray 1000 hours | ISO9227 | Corrosion Spreading<1mm |
① We use the better resin
• Much higher first pass rate
• Better hardness
• Better abrasion resistance,flexibility
• Better chemical resistance
② We use better pigment
• Better hiding
• More mileage
• Stronger UV Stability and weatherability
• Lower necessary film thickness
③ We use a higher resin content
• More excellent quality
• Higher first pass transfer efficiency
④ We offer a higher stability between batches
• Higher First pass Rate on the line
• Much higher satisfaction
• Less customer claims
