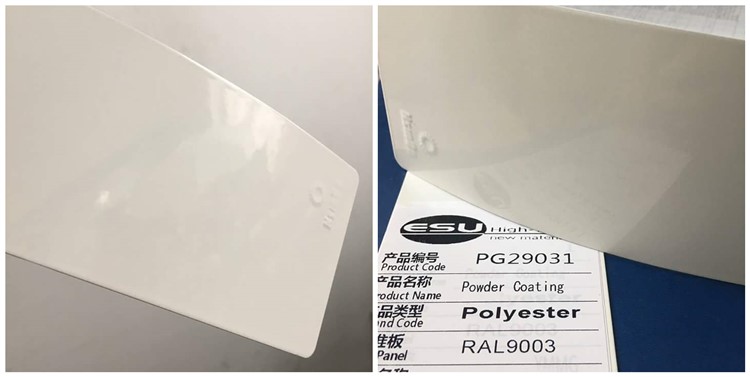

RAL 9003 Color Epoxy Polyester Powder Coating , Electrostatic Powder Coating
Powder coating is a technique used to apply a decorative and protective finish to a wide range of products that are used by both manufacturers and consumers. The powder is a mixture of finely ground particles of pigment and resin, which is electrostatically charged and sprayed on to the products to be coated. The charged powder particles adhere to the electrically grounded surfaces until heated and fused into a smooth coating in a curing oven. The result is a uniform, durable, high-quality and attractive finish. Powder coating is a superior finish that’s found on hundreds of products you come in contact with every day.
Contact us whatsapp/wechat:+8618190826106
♦ Our Powder finishes are available in a vast range of colors and finishes.
♦ Including metallic effect,chrome effect,wood grain,Candy Color Powder ,MDF powder
and other special effect,making them ideal for indoor decoration of steel furniture,
and outdoor metal products such as agricultural machinery, auto parts
♦ Our products have a good storage stability ,salt spray resistance,weatherability, exterior durability,
corrosion resistance,chemicals resistance, Highly Weather- and UV-Resistant,and also Good heat flow.
1. Product overview
♦ Epoxy powder coating: offer the best corrosion protection.
♦ Polyester powder coating: offer the highest exterior stability and performance.
♦ Our products applied to indoor and outdoor.
♦ Our products with SGS,Tuv, Rohs, ISO Certificate.
Other product
Product detail
| Type | Epoxy Powder Coating; Polyester Powder Coating; Epoxy-Polyester Powder Coating |
| Color | RAL&Pantone color |
| Surface Finish | Superior gloss and color retention |
| Particle Size | Average 32-42μm |
| Specific Gravity | 1.2-1.7g per cubic meter |
| Coverage | 8-10 square meters per Kg at 30-90 μm film thickness |
| film thickness | Not less than 100μm |
Instruction
| Application Voltage | 60-90 KV |
| Gun to Component Distance | 15-30CM |
| Curing Temperature | 180-200℃,10 min-15 min |
storage stability
| ♦ Store in ventilated, dry, clean room, temperature < 25℃ | ♦ Relative humidity 50-65% |
| ♦ Away from direct sunlight, fire, heat | ♦ For best performance, use within 6 months |
♦ Powder coatings are based on Resin,Pigments,Curing Agents,Additives.
♦ Resin(including Epoxy, polyester, hybrid)giving the basic performance to the coating.
♦ Pigments, Providing the colour and effects, such as metallic or hammer.
♦ Curing Agents, reacts with the resin to form a continuous protective film.
♦ Additives, can be used to promote variations in the performance or surface effects.
Product application
| Domestic Appliance | Machines and Equipment | Decorative Applications |
| Fans | Water Coolers | Shelves |
| Refrigerator | Computers | Bottles for beverages and cosmetics |
| Washing machines | Photo-copying machines | Display baskets |
| Geysers | Cameras | Cages |
| Cooking ranges | Lawn mowers | Ornamental grills etc |
| Sewing machines | Agricultural equipments | |
| Mixers | Office equipment | |
| Air Conditioners etc | Metal furniture etc | |
